Additional information
| Weight | 3.85 kg |
|---|---|
| Dimensions | 36.5 × 18 × 8.5 cm |
| Model No | SPSCAR-200012 |
| Rated Battery Voltage | 12V |
| Rated Power | 2000W |
| Surge Power | 4000W |
| Rated Current Bulb Load | 165A |
| No Load Power | 18 Watts |
| Efficiency | > 90% |
| Waveform | Pure Sine Wave |
| AC Voltage | 230VAC |
| Frequency | 50Hz |
| Battery Type | LFP/SLD/GEL/FLD/AGM |
| Input Voltage Range | 12V to 14.5V |
| Low Voltage Alarm | 10-10.5V |
| Battery Under Voltage Shutdown | 9.5-10V |
| Battery Low Voltage Recovery | 11.5-12V |
| Battery Overvoltage Protection | 15-15.5V |
| Battery Overvoltage Recovery | 14-14.5V |
| Output Short Circuit Protection | Turn Off Output and resume after restart |
| Protection | Automatically recovery after 2S, after 3 times failing to recover, the output will be OFF Until Switch is Turned OFF & Then ON Again. Overload LED Will be ON Until Switch Reset |
| Over Temperature Protection | Output off above 85 Degree & On Below 70 Degree |
| Input Undervoltage & Overvoltage Protection | Output Turns Off Upon Detection & Output Resumes once voltage is normal Until Switch is Turned OFF & Then ON Again |

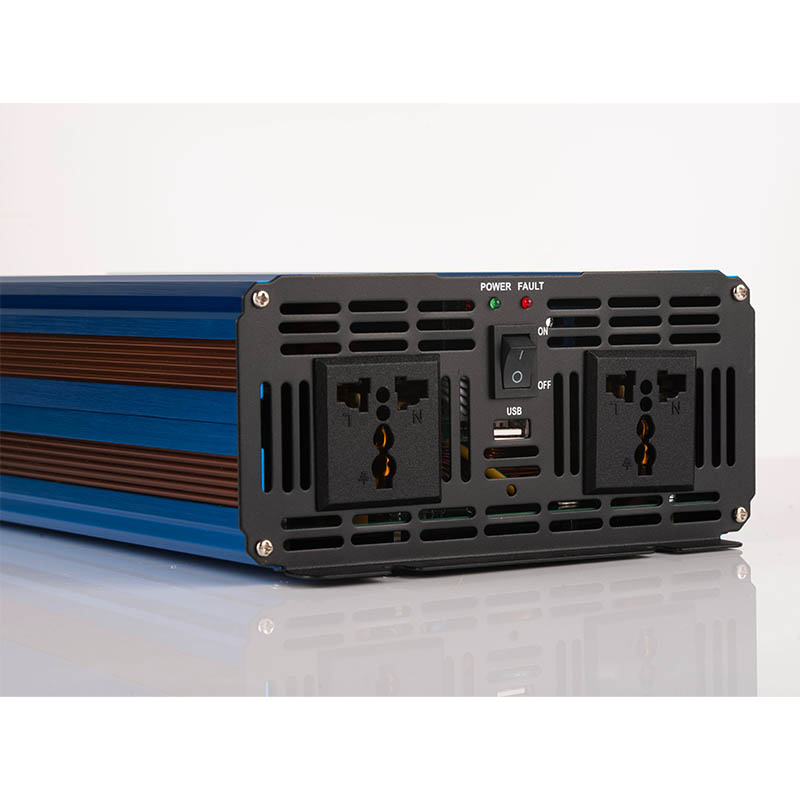

| Power or Output On/Off Switch | Yes |
| USB Port | USB 5V 2.0A |

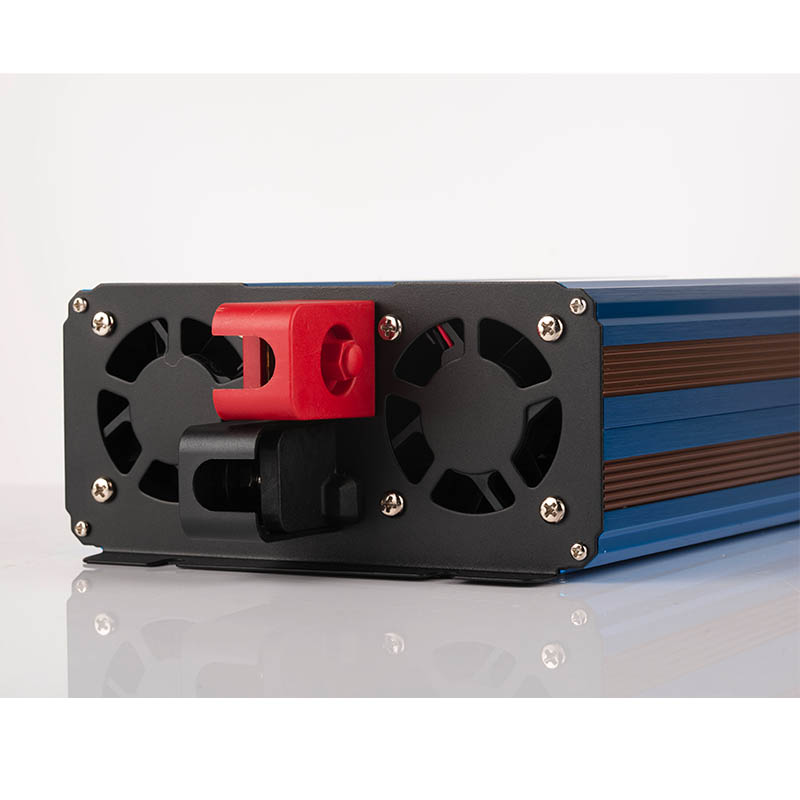

| Cooling Way | 2 x Temperature Controlled Fan |
| LED Indications | Power On, Fault |
| LCD Display Parameters | Not Applicable |
| Audio Alarms | Short Beep: Power On, Long Continuous Beep: Fault/Overload Intermittent Short Beeps: Low Voltage/High Voltage/Overload Start |
| Working Environment Temp | -20 to 40 Degree C |
| Working Humidity Environment | 20% to 95% RH |
| Storage Temperature/Humidity | -40 to 65 Degree C/10% to 90% RH |

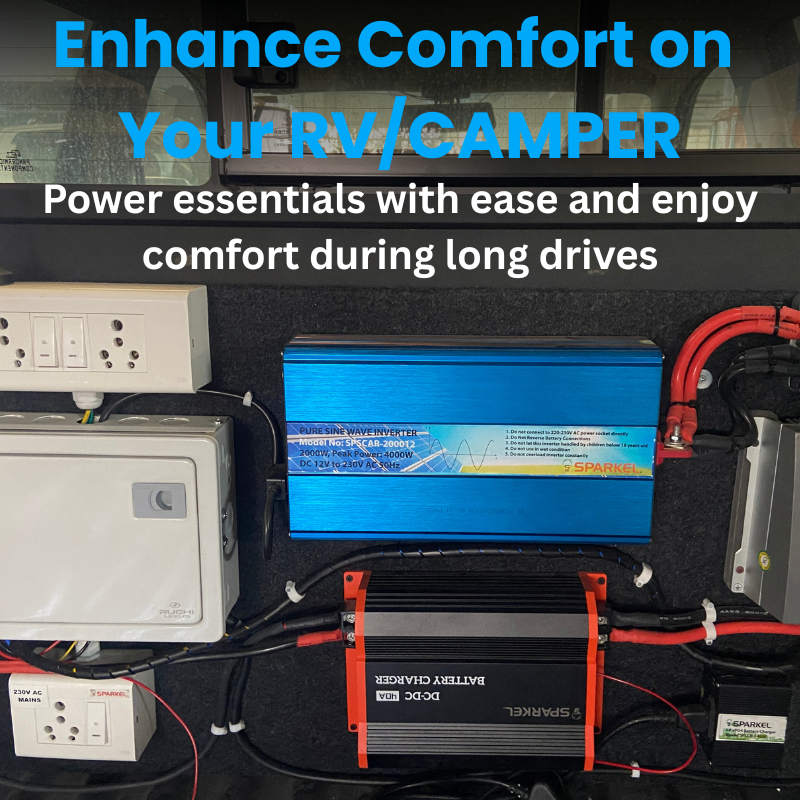

| Applications | Vehicles, RV, Campervans, Ambulance, Fire Truck, Yachts, Portable Power Supply, Control Panels, Solar Off-Grid System |

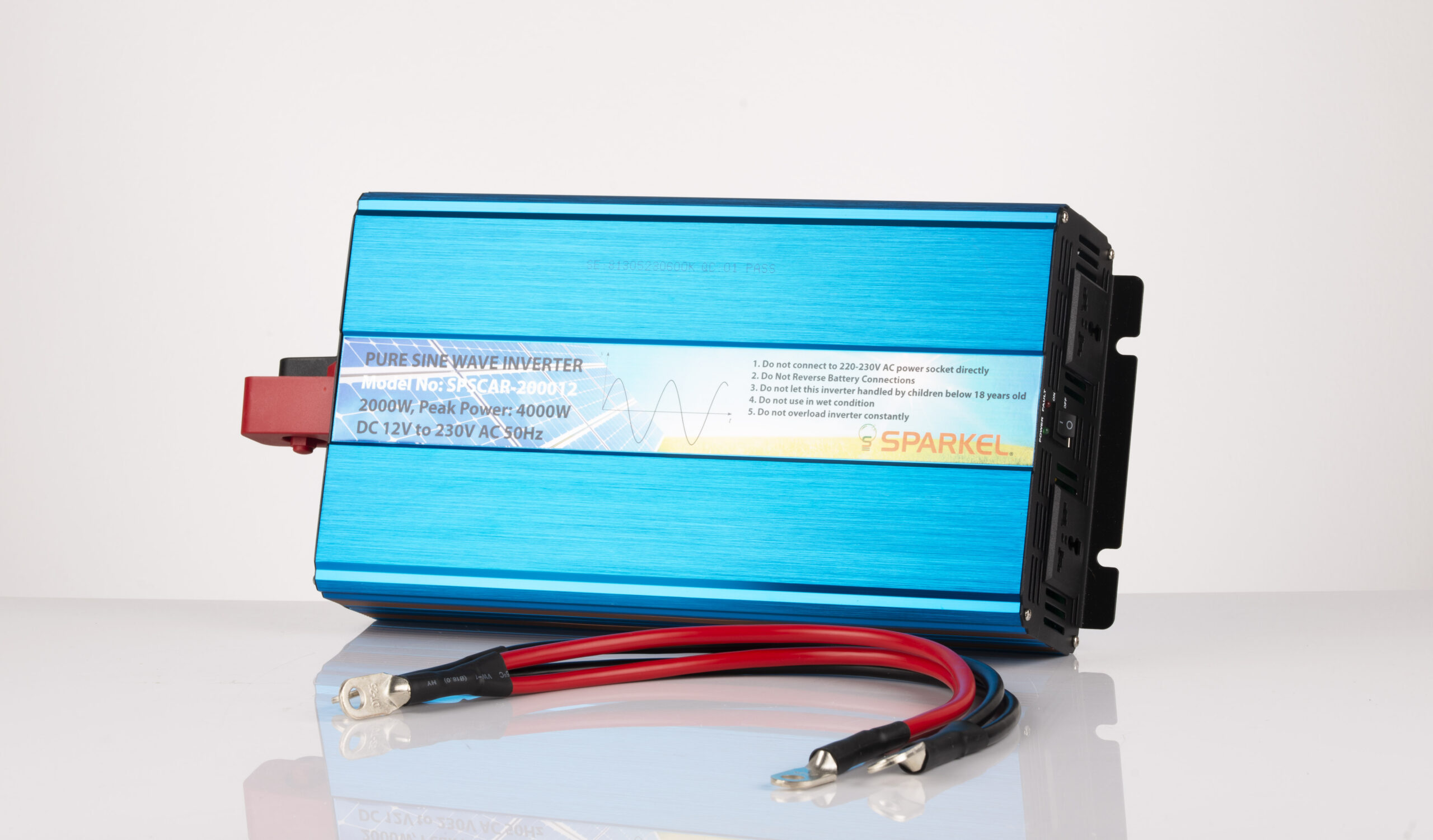

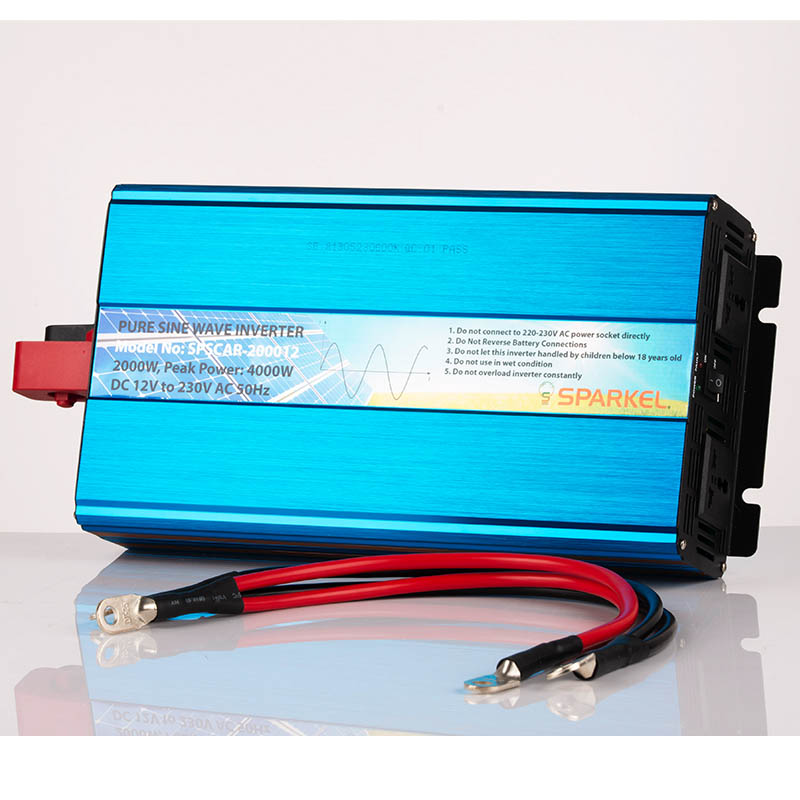

| Package Includes | SPSCAR-200012 Car Inverter + 25sqmmx2 Red & Black Battery Cables with Cu Ring Terminals on Both End (45cm Length) |
